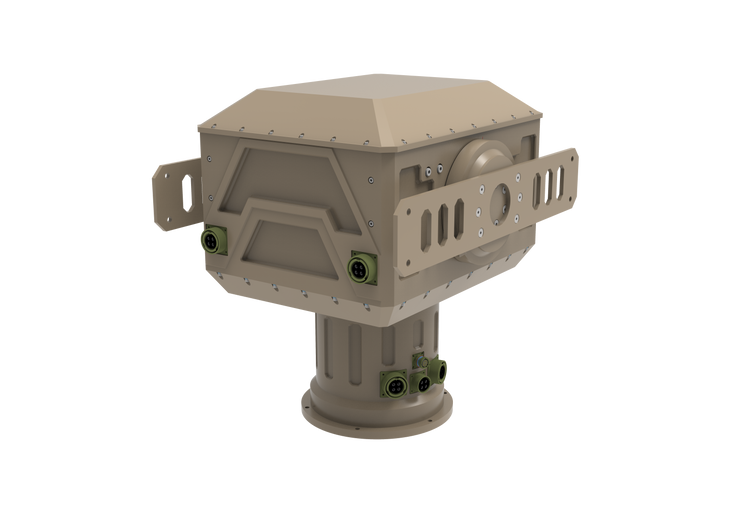

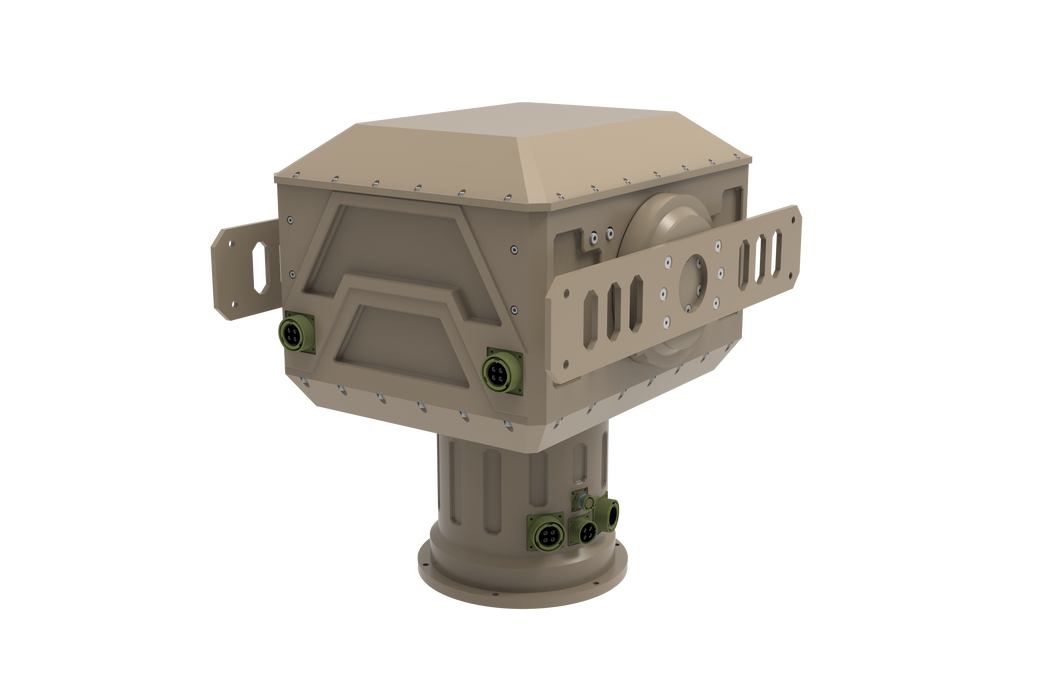

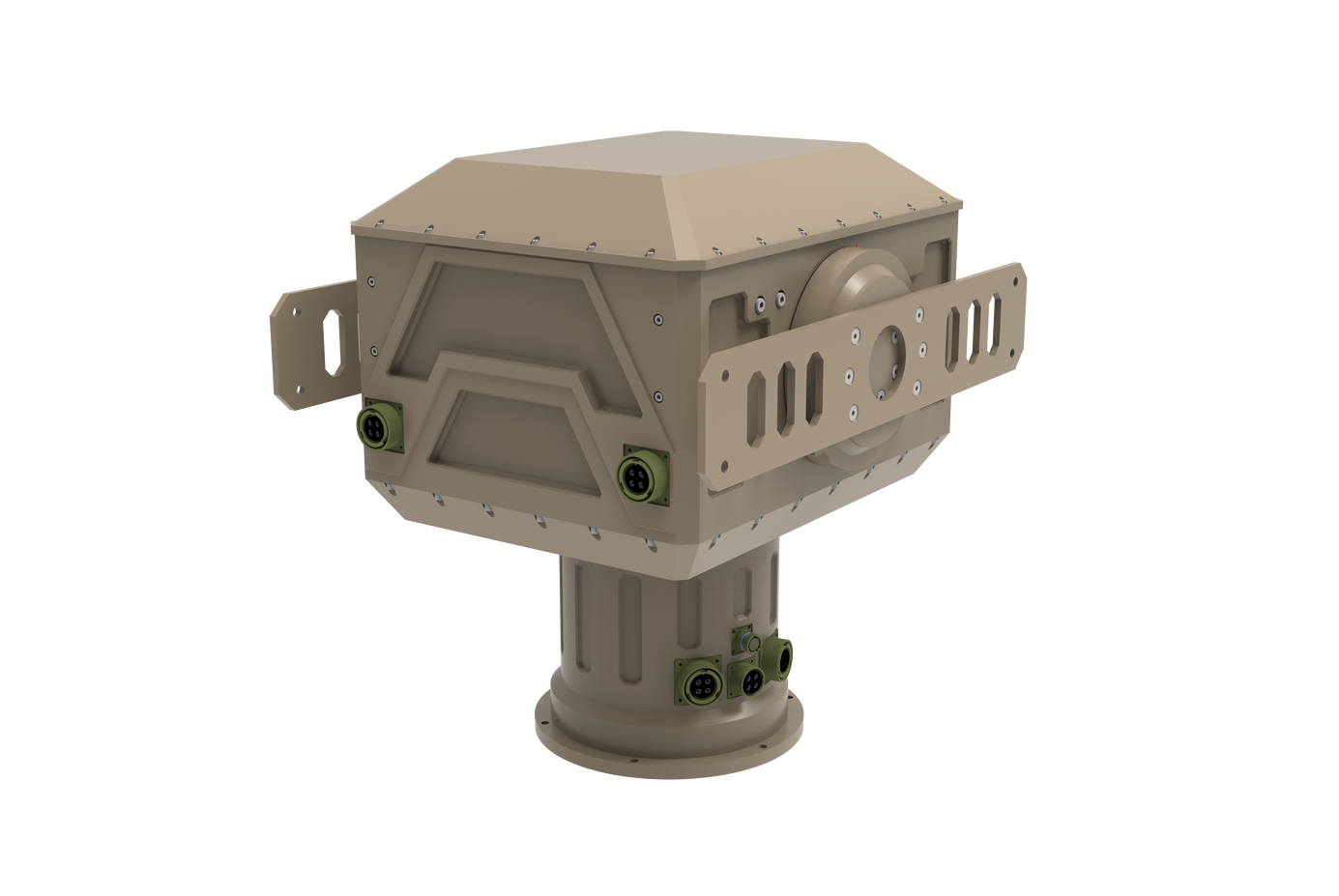

GSPT-DUO-T-T5100™ is one of the most powerful motion control systems in its class, developed for high-precision positioning of ultra-heavy payloads. Its robust drive system and precision control architecture ensure stable performance even under challenging field conditions.
With a payload capacity of up to 100 kg, the system supports integration with large radar heads, electro-optical payloads, canisters, and electronic warfare systems. The n×360° pan motion capability supports continuous operations, while absolute encoder technology enables real-time, repeatable, and reference-free positioning.
One of the system’s standout features is its 300 Nm torque capacity, delivering exceptional force transmission for heavy-duty directional control. Its mechanical design minimizes backlash, ensuring high stability and accuracy. The integrated brake motor enhances dynamic motion control while also providing secure stop and position-hold functionality.
Designed for integration into both fixed and mobile platforms, GSPT-DUO-T-T5100™ is a customizable and rugged solution ideal for border surveillance, mobile radar units, and other defense-grade applications.
